Automotive radar antennas

High resolution radar technology for higher automotive safety

The better the antenna of the radar, the better the range and field of view– and the better the range and field of view, the safer the traffic. At Gapwaves we develop highly efficient, reliable, compact and cost-effective high gain antenna solutions based on our patented technology. Our antennas are superior in both performance and cost-efficiency, and ready for high volume production.

Get in touch.

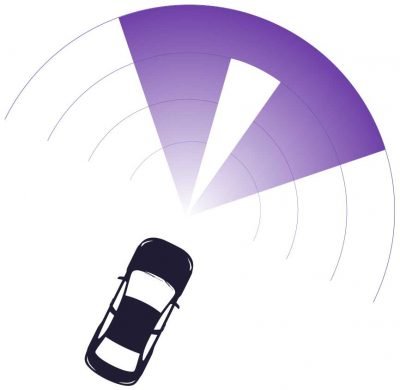

Short, Mid and Long Range Radar antennas

We customize our antenna solutions based on your actual needs, such as forward and rear corner radars, long ranging rear and forward radars and also, thanks to the low cost and compact form factor, short range sensors. In other words: there is no use case we can’t support.

Imaging Radar antennas

We develop and produce more advanced, innovative radar solutions. Such as our Imaging radar antenna. A unique product, consisting of a higher number of antennas, that create high resolution two-dimensional radar images that are required for autonomous driving.

Short, Mid and Long Range Radar antennas

We customize our antenna solutions based on your actual needs, such as forward and rear corner radars, long ranging rear and forward radars and also, thanks to the low cost and compact form factor, short range sensors. In other words: there is no use case we can’t support.

Imaging Radar antennas

We develop and produce more advanced, innovative radar solutions. Such as our Imaging radar antenna. A unique product, consisting of a higher number of antennas, that create high resolution two-dimensional radar images that are required for autonomous driving.

Exceptional performance and range

  • 3 dB less feeding lossand higher antenna gain, compared to patch antennas.
  • Twice the target detection area, compared to traditional technologies.
  • Superior cooling, thanks to our 3D building practice using metallized plastic.
  • Aflexible design that supports easy adaptation to all radar types.

Compact and cost effective

Our high gain antenna array with wide beam is the ultimate solution for any type of automotive radar. Each antenna is very compact and built with a 3D practice using metalized plastic. This makes our antennas small, lightweight and highly cost-effective. In fact, compared to other existing technologies, our automotive radar solutions will reduce your costs by 25%– and at the same time double the performance, while reducing the size with more than 50%

Do you want to know more?

Get in touch.

Data sheets

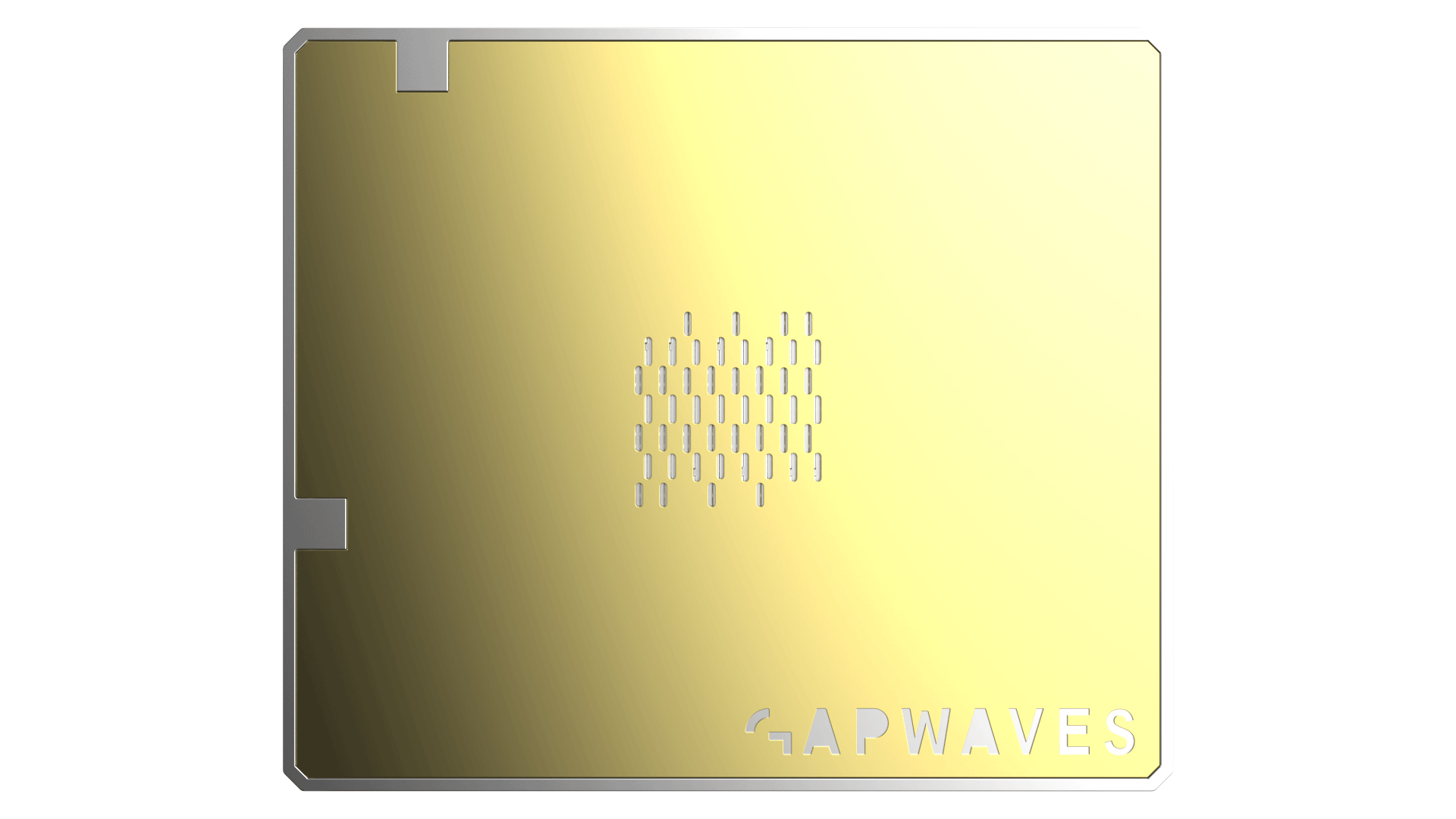

77 GHz Automotive Reference Antenna
